H5 Lite Hub
The H5 Lite is a desktop Hub that connects compatible Bluetooth LE devices to the MOCREO Cloud and presents monitoring information on its local displays.
H5 Lite Hub
The H5 Lite is a desktop Hub that connects compatible Bluetooth LE devices to the MOCREO Cloud and presents monitoring information on its local displays.
Core Functions
- Collects data from compatible Bluetooth LE devices and uploads it over 2.4 GHz Wi-Fi.
- Shows device readings, history, and Hub information on a 2-inch IPS LCD.
- Provides a separate four-digit LED clock display and local controls.

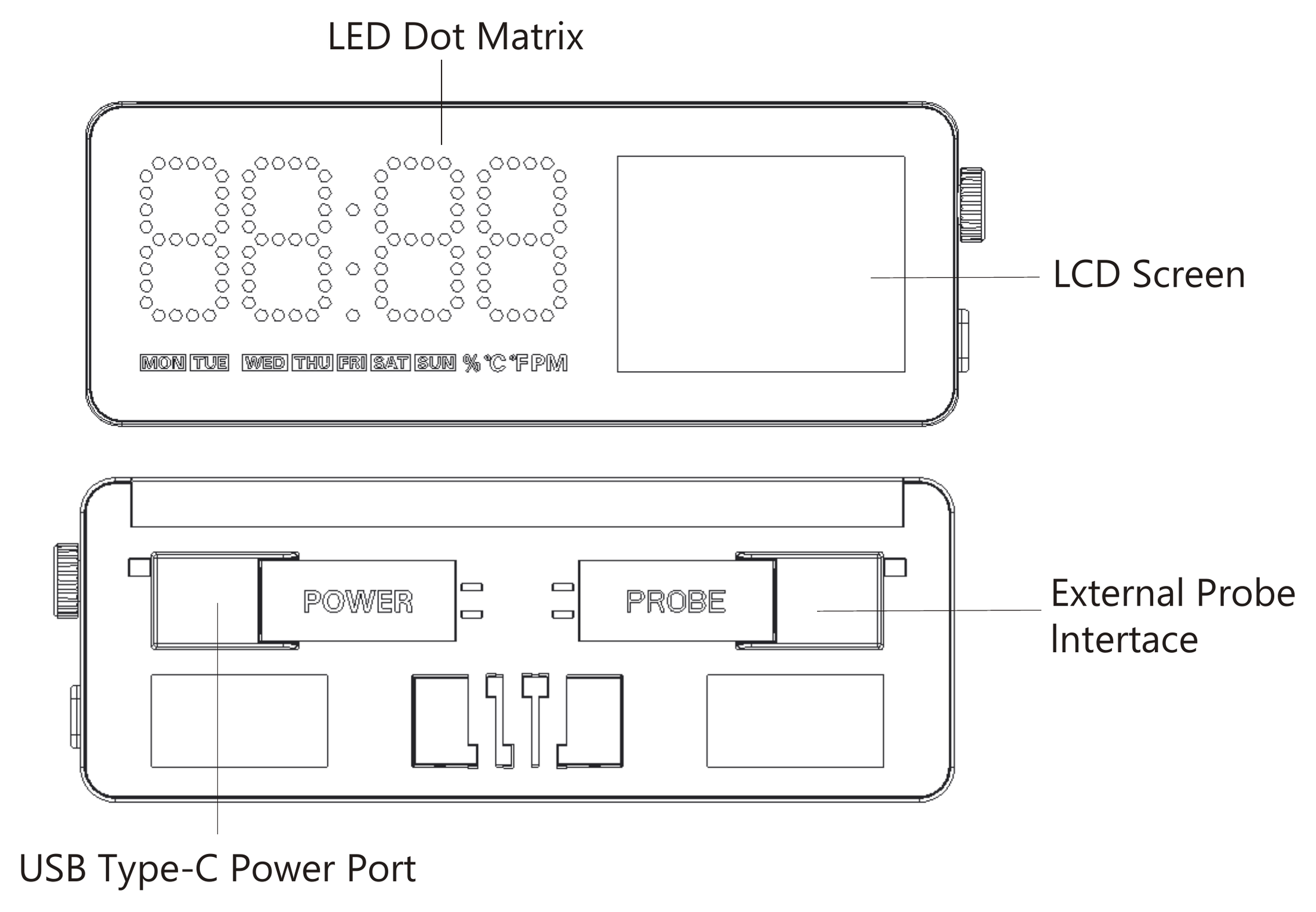

Product Appearance
Specifications
| Specification | Details |
|---|---|
| Model | H5 Lite |
| Physical Buttons | 1 rotary encoder, 1 oval button |
| Display | 2-inch, 320 x 240 IPS LCD, non-touch |
| LED Display | 7-segment, 4-digit clock display |
| Wireless Protocols | Wi-Fi 2.4 GHz (802.11 b/g/n), BLE 5.0 |
| Power Input | DC 5 V / 1 A (USB-C) |
| External Probe Interface | USB-C temperature probe interface (optional) |
| Dimensions | 5.01 x 0.54 x 1.80 in |
| Weight | 1.93 oz |
| Mounting | Desktop stand or adhesive wall mounting |
Directly Connected Temperature Probe
The optional temperature probe connected directly to the H5 Lite uses the same measurement specifications as the external probes used by the MS1 and LS2.
| Probe Specification | Details |
|---|---|
| Connection | USB-C |
| Cable Length | 4.9 ft (1.5 m) |
| Measuring Range | -40°F to 221°F (-40°C to 105°C) |
| Temperature Accuracy | ±0.9°F (±0.5°C) from 14°F to 185°F (-10°C to 85°C) |
