H5 Pro Hub
The H5 Pro is a desktop Hub for Bluetooth LE and long-range LoRa devices. It connects to the MOCREO Cloud by 2.4 GHz Wi-Fi or Ethernet and provides local monitoring through its displays.
Core Functions
- Connects compatible Bluetooth LE and LoRa devices.
- Supports 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet network connections.
- Shows readings, history, alerts, and Hub information on a 2-inch IPS LCD.

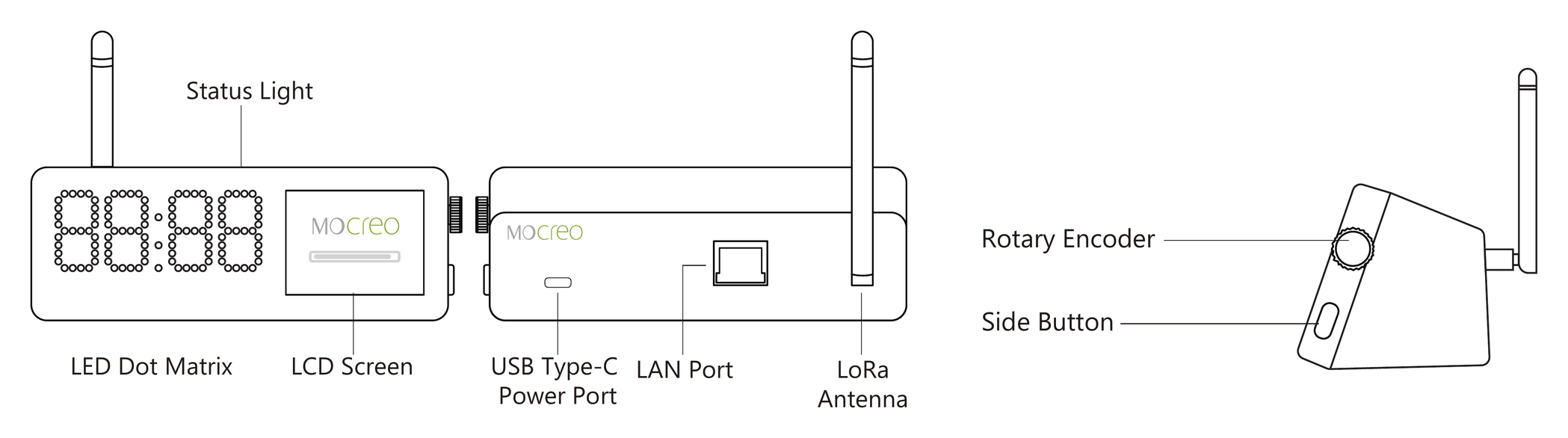

Product Appearance
Specifications
| Specification | Details |
|---|---|
| Model | H5 Pro |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Physical Buttons | 1 rotary encoder, 1 oval button |
| Display | 2-inch, 320 x 240 IPS LCD, non-touch |
| LED Display | 7-segment, 4-digit clock display |
| Wireless Protocols | Wi-Fi 2.4 GHz, LoRa 915 MHz, BLE 5.0 |
| Ethernet | 10/100 Mbps |
| Power Input | DC 5 V / 1 A (USB-C) |
| Buzzer Sound Level | 90 dB at 10 cm |
| Dimensions with Antenna | 5.04 x 3.08 x 3.77 in |
| Dimensions without Antenna | 5.04 x 2.06 x 1.86 in |
| Weight | 4.1 oz |
