LB1 LoRa Strobe Siren
The LB1 is a long-range audible and visual alarm device for providing immediate local notification when a supported alert is triggered.
LB1 LoRa Strobe Siren
The LB1 is a long-range audible and visual alarm device for providing immediate local notification when a supported alert is triggered.
Core Functions
- Receives alert commands over long-range LoRa communication.
- Provides a high-intensity buzzer with adjustable volume levels.
- Provides an adjustable visual strobe alarm.
Product Appearance

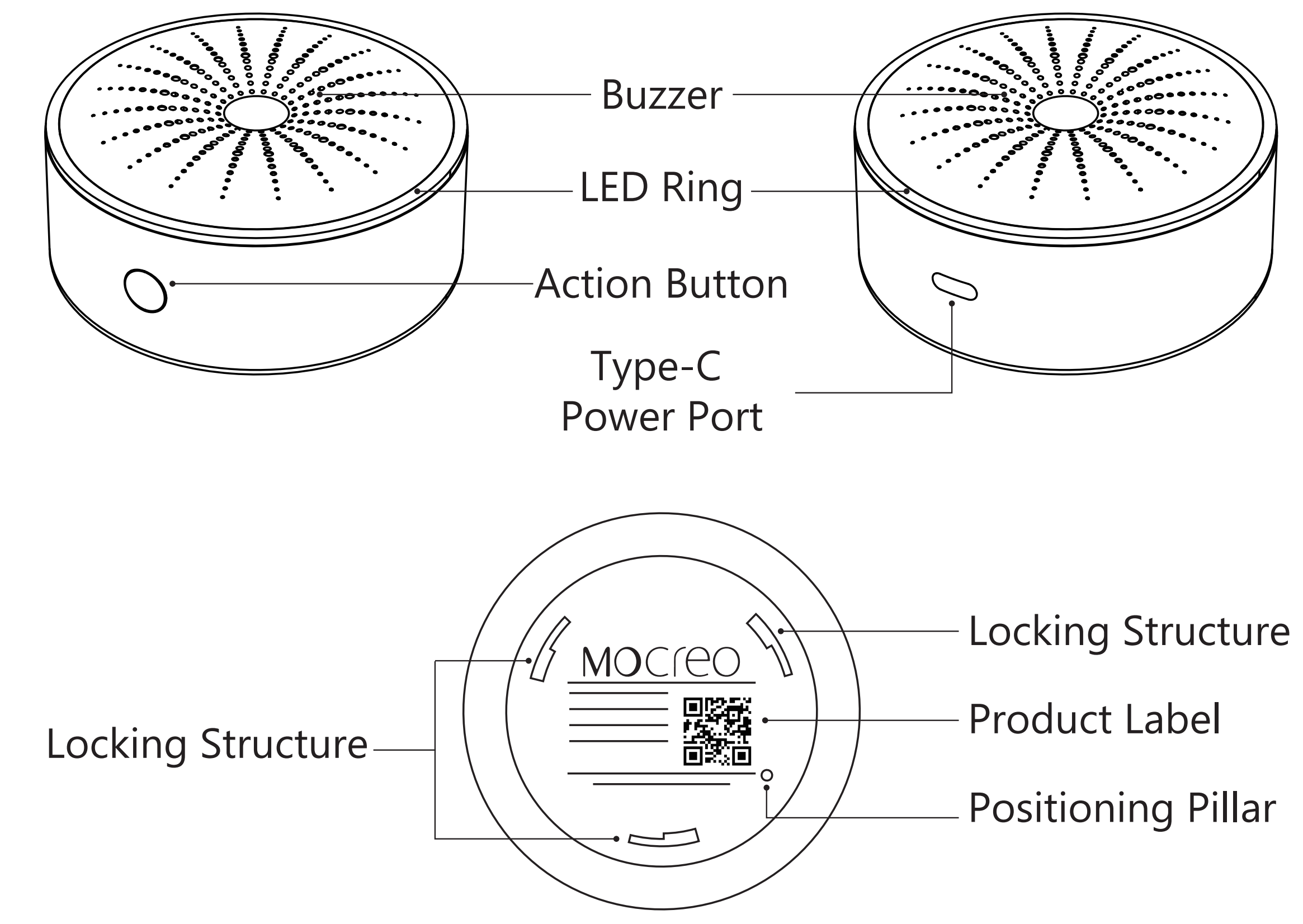

The diagram identifies the buzzer, LED ring, action button, USB-C power port, product label, and mounting-lock features.
Specifications
| Specification | Details |
|---|---|
| Model | LB1 |
| Wireless Protocols | LoRa 915 MHz |
| Wireless Range | Up to 2000 ft (610 m), line-of-sight |
| Power Input | 5 V / 1 A USB-C adapter |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Alarm Modes | Audible buzzer and visual strobe |
| Buzzer Volume | Adjustable, levels 0-3 |
| Buzzer Sound Level | 120 dB at 10 cm |
| Visual Alarm | Adjustable, levels 0-3 |
| IP Rating | IP54 |
