LS1 Temperature Sensor
The LS1 is a long-range temperature sensor with a built-in probe and an IP66 enclosure for continuous monitoring in demanding environments.
LS1 Temperature Sensor
The LS1 is a long-range temperature sensor with a built-in probe and an IP66 enclosure for continuous monitoring in demanding environments.
Core Functions
- Measures ambient temperature with a built-in probe.
- Sends readings over long-range LoRa communication.
- Uses replaceable AAA batteries and an IP66-rated enclosure.
Product Appearance

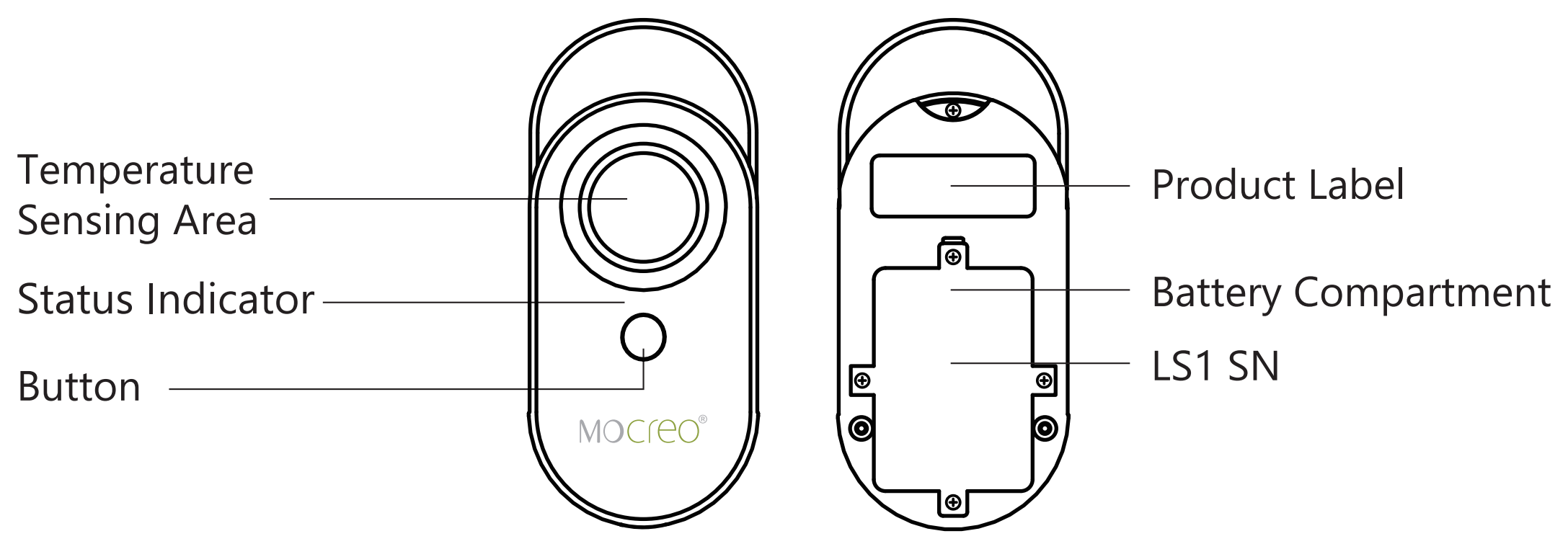

The diagram identifies the built-in sensing area, status indicator, front button, product label, battery compartment, and serial-number location.
Specifications
| Specification | Details |
|---|---|
| Model | LS1 |
| Wireless Protocols | Older version (0030AEA4): Bluetooth LE + LoRa; new version (0030AE1x): LoRa only |
| Wireless Range | Up to 2000 ft (610 m), line-of-sight |
| Battery | 3 AAA batteries (replaceable) |
| Temperature Measuring Range | -4°F to 221°F (-20°C to 105°C) |
| Temperature Accuracy | ±0.9°F (±0.5°C) |
| IP Rating | IP66 |
