MOCREO Smart System Architecture

System: MOCREO Smart System

Overview

The MOCREO Smart System is our latest and most feature-rich monitoring platform, designed to unlock the full potential of your monitoring setup. It features an upgraded server and client architecture that significantly enhances multi-user and multi-device management capabilities.

System Components

Core Hub Products

H3 Hub

Technology: Wi-Fi and BLE communication with built-in power outlet
Display: LED indicators and status display
Connectivity: Wi-Fi (2.4GHz), BLE 5.0
Function: Smart hub with integrated power outlet for remote control
Features: Cloud remote control, built-in buzzer (80dB), direct AC plug-in power

H5-Lite Hub

Technology: Wi-Fi and BLE communication
Display: 2-inch IPS LCD display (320 × 240)
Connectivity: Wi-Fi (2.4GHz), BLE 5.0
Function: Lightweight hub with portable human-computer interaction
Features: Data visualization and real-time monitoring

H5-Pro Hub

Technology: LoRa communication (915MHz)
Display: 2-inch IPS LCD display (320 × 240)
Connectivity: Wi-Fi (2.4GHz), Ethernet, LoRa, BLE 5.0
Function: Central hub for managing multiple sensors across expansive areas
Range: Extended coverage through LoRa technology

Sensor Product Categories

Temperature Sensors

ST5: Basic temperature sensor (external probe)
ST8: Temperature sensor with buzzer alarm functionality (external probe)
ST10: Ultra-low temperature sensor (-328℉ ~ 392℉) (external probe)
MS1: Wireless temperature sensor with AAA replaceable battery power supply (external probe)
LS1: LoRa temperature sensor with IP66 waterproof rating and built-in probe
LS2: LoRa temperature sensor (external probe, no IP66 waterproof rating)

Temperature and Humidity Sensors

ST6: Basic temperature and humidity sensor
ST9: Temperature and humidity sensor (external probe)
LS3: LoRa temperature and humidity sensor for environmental monitoring

Specialized Sensors

SW2: Water leak sensor with highly sensitive detection probes (external probe)
NS1: Wi-Fi thermometer with 1.54-inch color IPS LCD display and direct Wi-Fi connection (external probe)
NS2: Wi-Fi Thermo-Hygrometer with 1.54-inch color IPS LCD display and direct Wi-Fi connection (external probe)

Communication Technologies

Bluetooth Low Energy (BLE)

Range: Up to 131ft/40m (no obstacles)
Version: BLE 5.0
Products: ST5, ST6, ST8, ST9, ST10, SW2, MS1, NS1

LoRa Technology

Frequency: 915MHz
Range: Up to 1640ft/500m (no obstacles)
Products: H5-Pro, LS1, LS2
Advantages: Long-range communication, low power consumption

Wi-Fi Connectivity

Standard: 2.4GHz, 802.11 b/g/n
Products: H5-Pro, H5-Lite, NS1
Features: Direct cloud connectivity, real-time data transmission

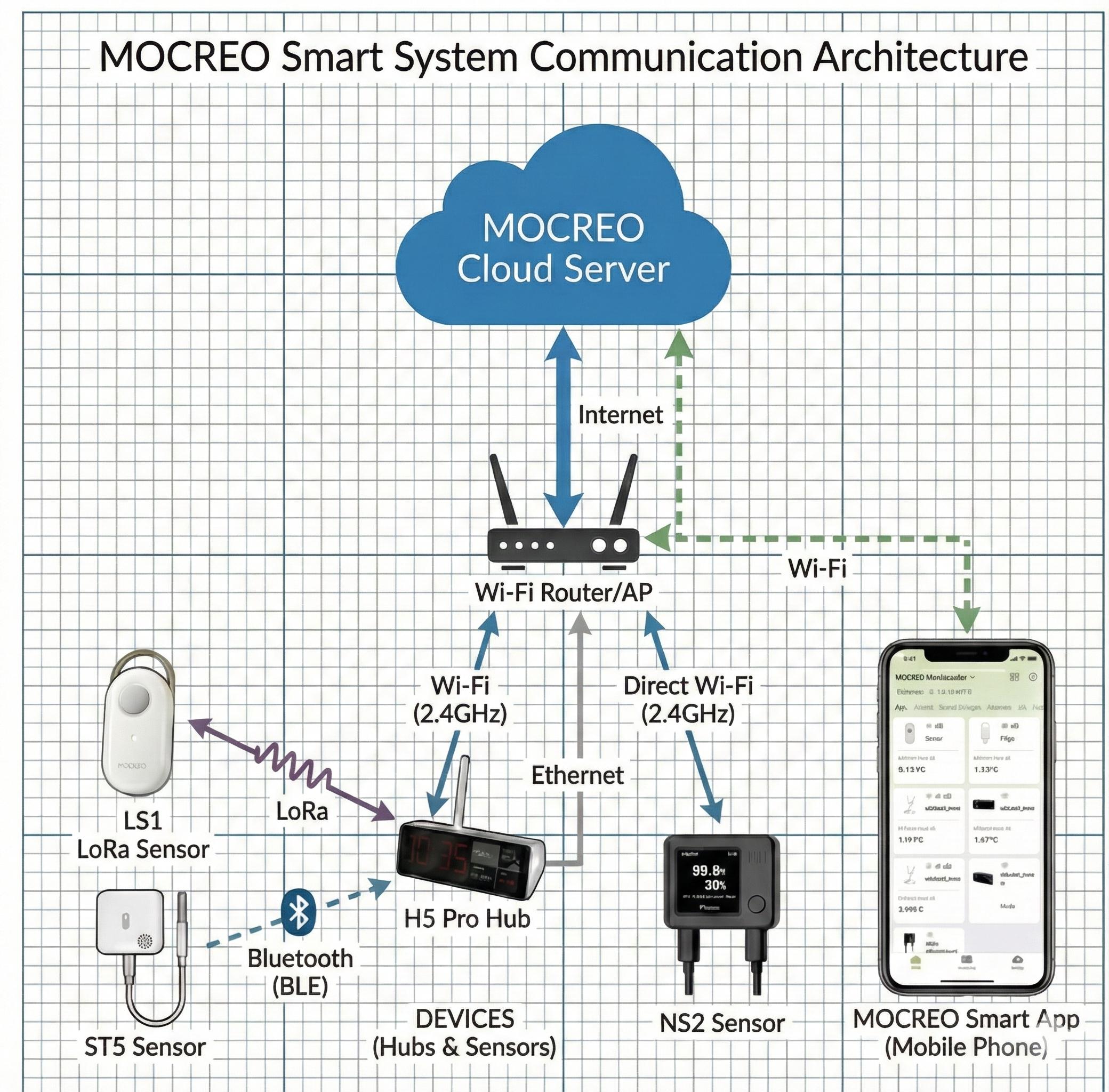

System Architecture

Hub-Sensor Network

The MOCREO Smart System operates on a hub-sensor architecture where: - Hubs serve as central communication points - Sensors collect environmental data and transmit to hubs - Cloud Server processes and stores data from all hubs - Mobile App provides user interface for monitoring and control

Data Flow

Data Collection: Sensors continuously monitor environmental conditions
Data Transmission: Sensors communicate with hubs via BLE/LoRa
Data Processing: Hubs process and forward data to cloud servers
Data Storage: Cloud servers store historical data and analytics
User Access: Users access data through MOCREO Smart App

Key Features

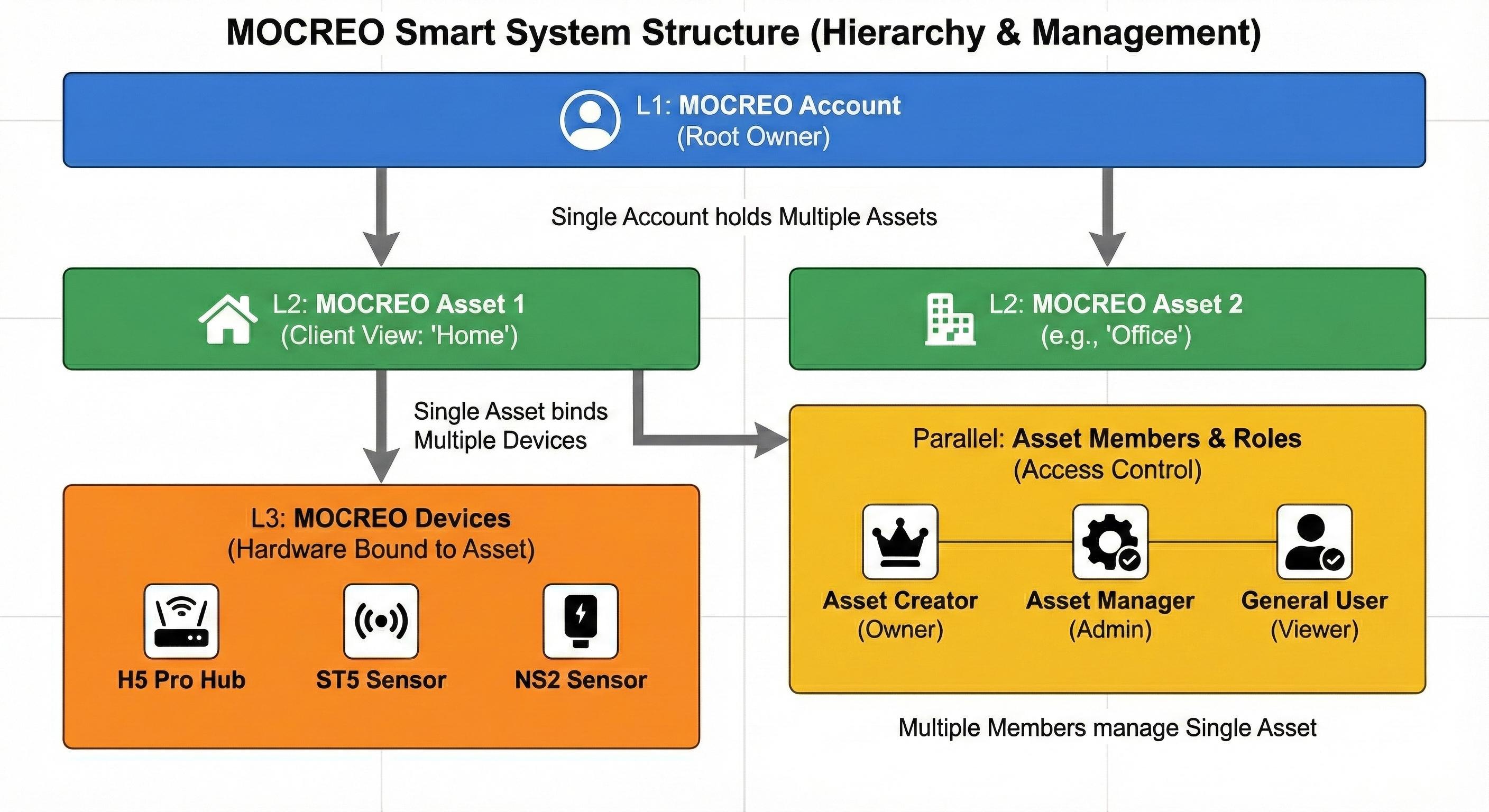

Multi-Device Management

Support for multiple hubs and sensors
Centralized device configuration and monitoring
Scalable architecture for large installations

Real-Time Monitoring

Live data streaming from all connected devices
Instant alerts and notifications
Historical data analysis and trending

Advanced Analytics

Temperature and humidity trend analysis
Alert pattern recognition
Performance optimization recommendations

Cross-Platform Compatibility

Mobile app support (iOS/Android)
Web-based dashboard access
API integration capabilities

System Advantages

Enhanced Performance

Upgraded server infrastructure
Improved data processing capabilities
Faster response times

Better User Experience

Intuitive mobile app interface
Comprehensive device management
Advanced alert customization

Future-Ready Architecture

Support for upcoming product releases
Scalable design for growing needs
Continuous system improvements

Compatibility Matrix

Product	H5-Pro	H5-Lite	H3	Communication	System
ST5	✓	✓	✓	BLE	Smart System
ST6	✓	✓	✓	BLE	Smart System
ST8	✓	✓	✓	BLE	Smart System
ST9	✓	✓	✓	BLE	Smart System
ST10	✓	✓	✓	BLE	Smart System
SW2	✓	✓	✓	BLE	Smart System
NS1	-	-	-	BLE & Wi-Fi	Smart System
NS2	-	-	-	BLE & Wi-Fi	Smart System
MS1	✓	✓	✓	BLE	Smart System
LS1	✓	-	-	BLE & LoRa	Smart System
LS2	✓	-	-	BLE & LoRa	Smart System
LS3	✓	-	-	BLE & LoRa	Smart System

Migration from Legacy Systems

For Existing Users

Account information automatically migrated to new system
Compatible sensors can be used with new hubs
Data backup recommended before system transition

System Benefits

Enhanced multi-user management
Improved device compatibility
Advanced monitoring capabilities
Future product support

Technical Specifications

Hub Specifications

Power: DC 5V/1A, Type-C connector (H5-Pro, H5-Lite)
H3 Power: Direct AC plug-in (100~240V 50/60Hz), no power adapter required
Dimensions: Varies by model
Operating Temperature: -10°C to 55°C
Storage: Local data caching and cloud synchronization

Sensor Specifications

Battery Life: Varies by model (rechargeable or replaceable)
Accuracy: ±0.5°C to ±1.8°F depending on model
Operating Range: -40°C to 200°C depending on model
Protection: IP66 rating for outdoor models

Support and Documentation

For detailed setup instructions, troubleshooting guides, and technical support, please refer to: - Individual product setup guides in the Setup section - FAQ section for common issues and solutions - Contact support for technical assistance

This document provides a comprehensive overview of the MOCREO Smart System architecture and its component products. All products listed in this document are part of the MOCREO Smart System ecosystem.
