Hub Local Feature Guide (H5 Series)

This guide highlights common hub controls that can be performed locally without opening the cloud console. Each section pairs a short description with the corresponding on-device UI.

Hub Indicator Brightness & Buzzer Alerts

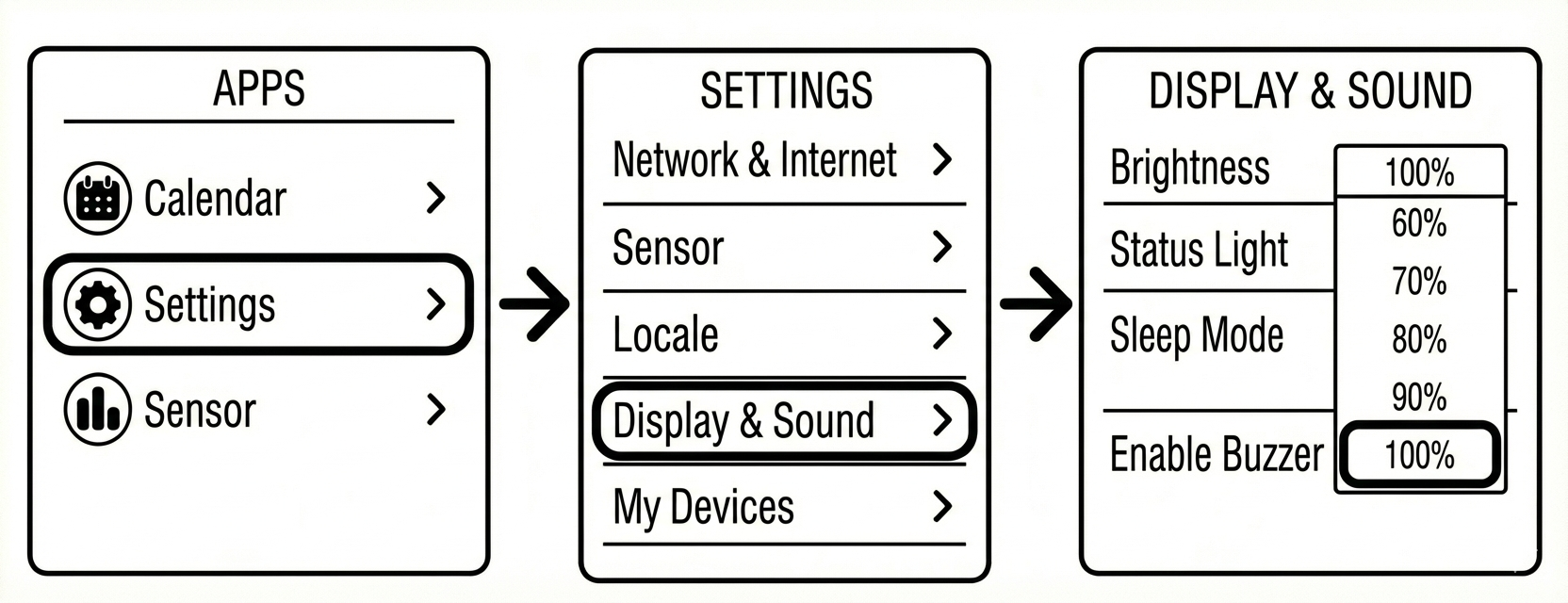

Indicator brightness control – adjust the brightness of both the status light and the main screen (dimming only; neither element can be completely turned off via this selector). If you need the status light fully off, open Status Light on the same page and set it there.

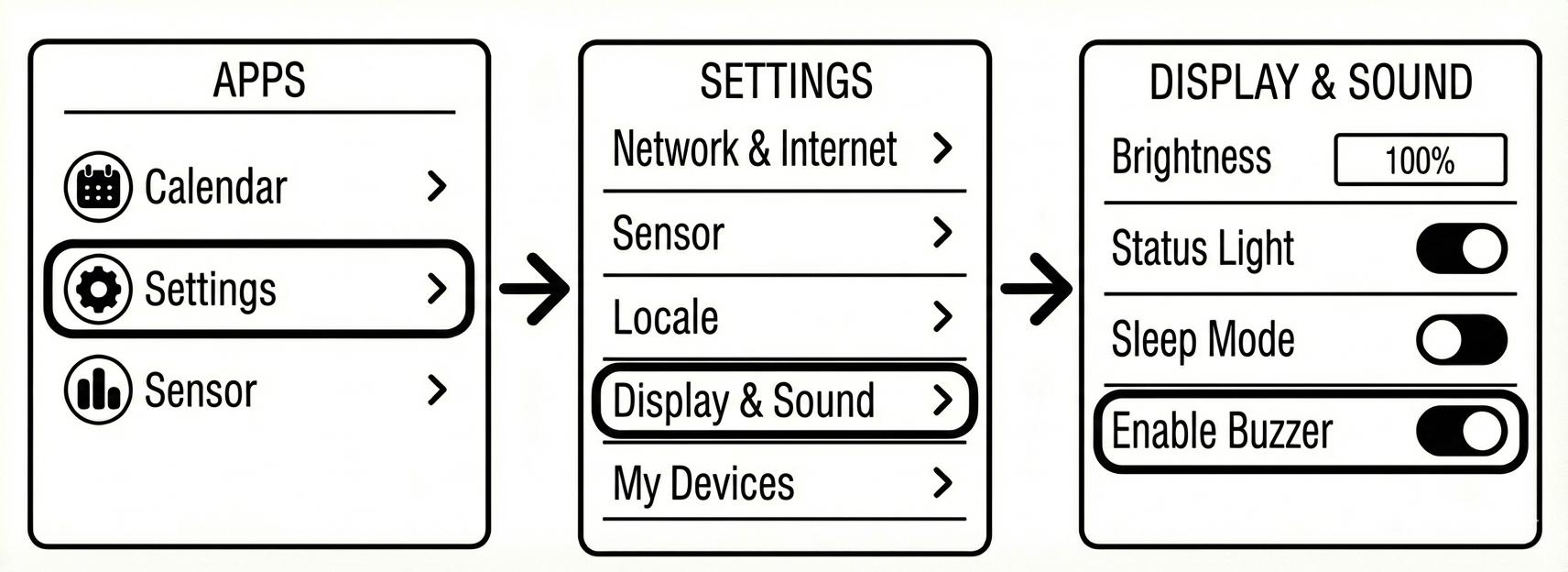

Buzzer alert toggle – silence or re-enable the hub buzzer when audible alerts are either disruptive or required.

Local Data Display

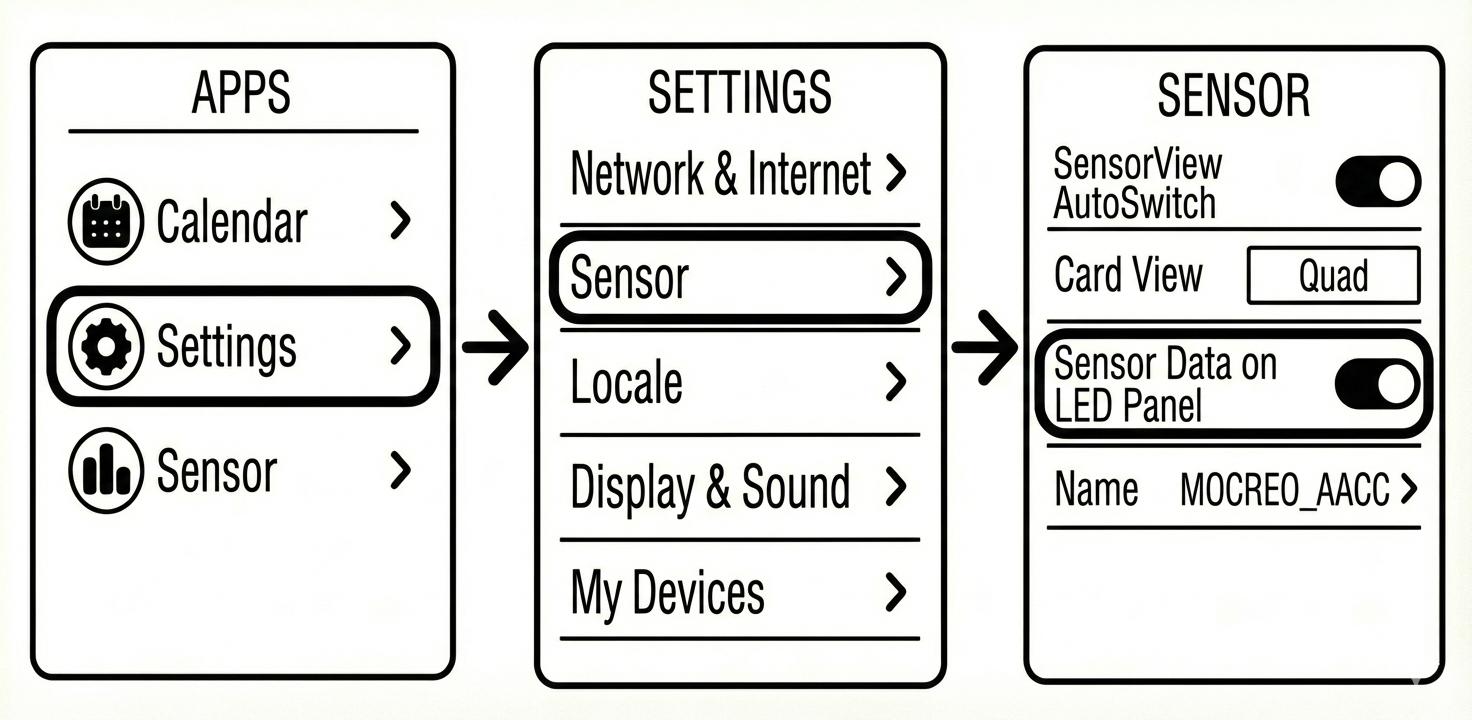

LED matrix fixed display – choose a single sensor whose readings stay on the left LED clock matrix; the data does not rotate automatically, and only one sensor can appear on the right screen at any time.

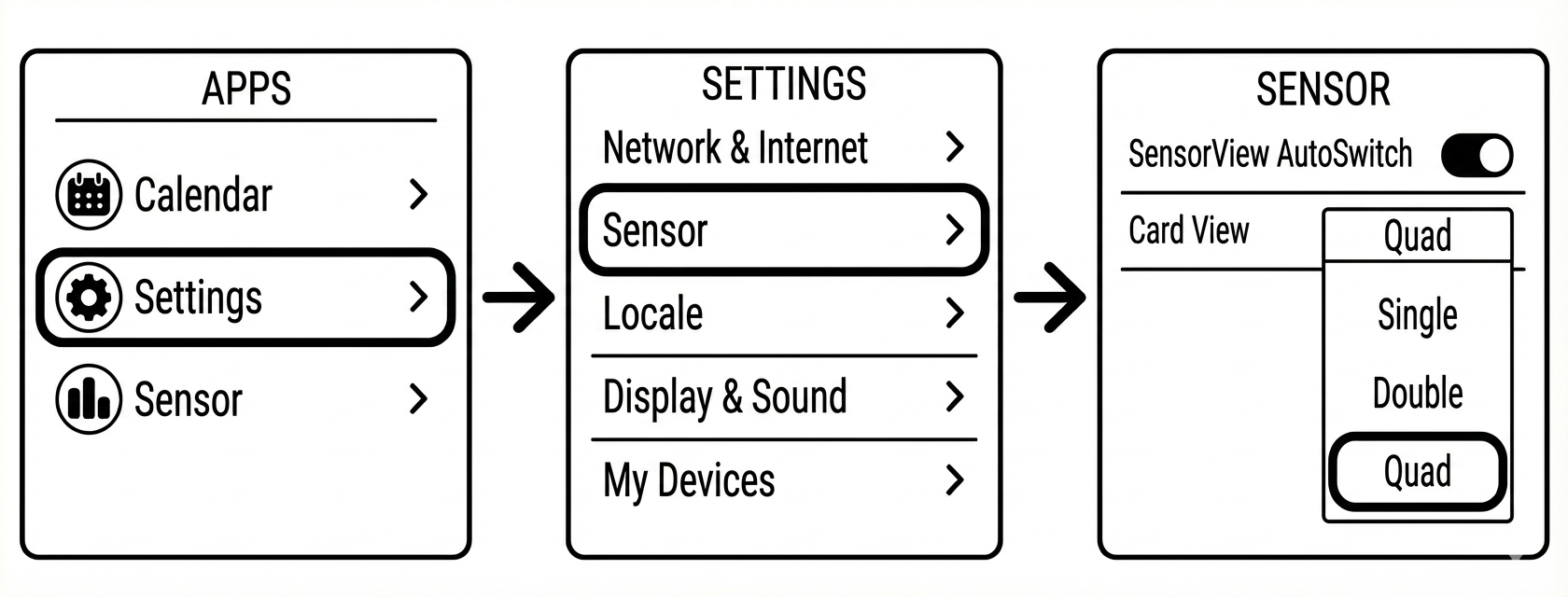

Sensor card density – define how many sensors appear on each hub app page (1, 2, or 4 cards per screen) to balance readability and information density.

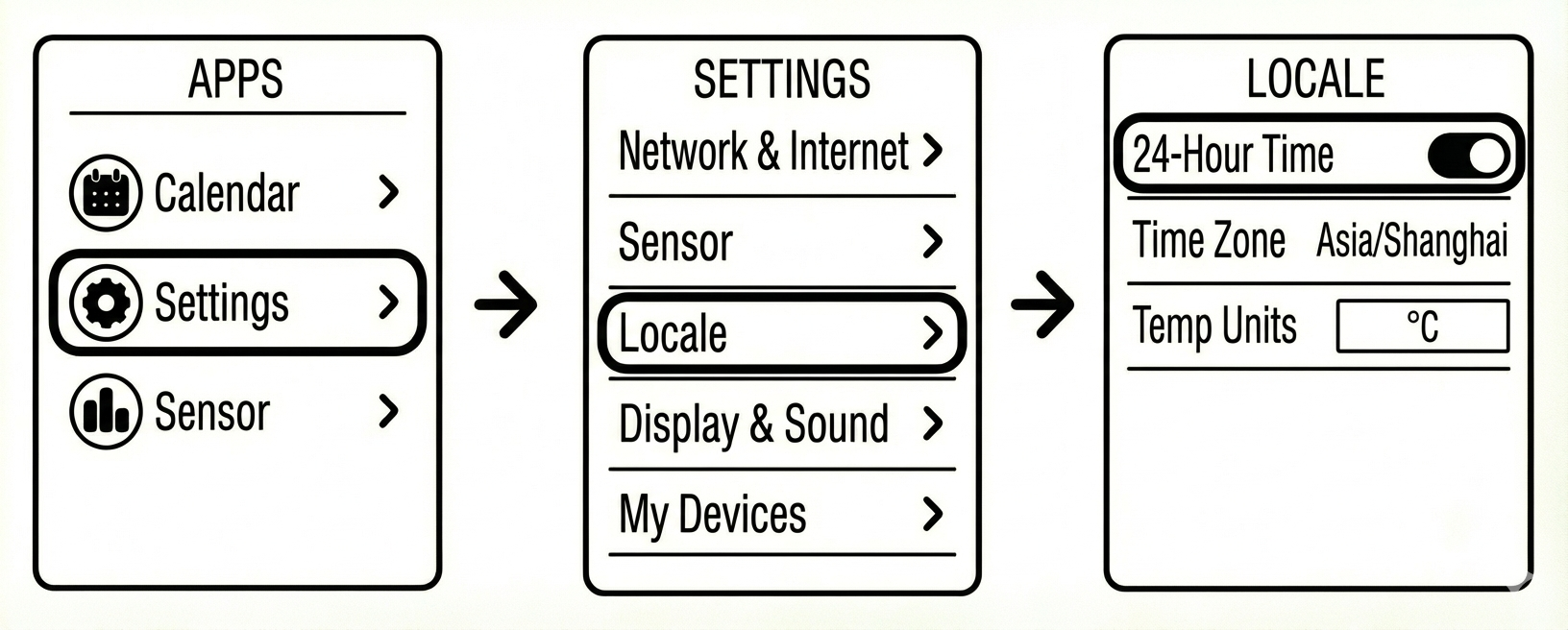

Time format – switch between 12-hour and 24-hour clock styles for the hub interface.

Network Utilities

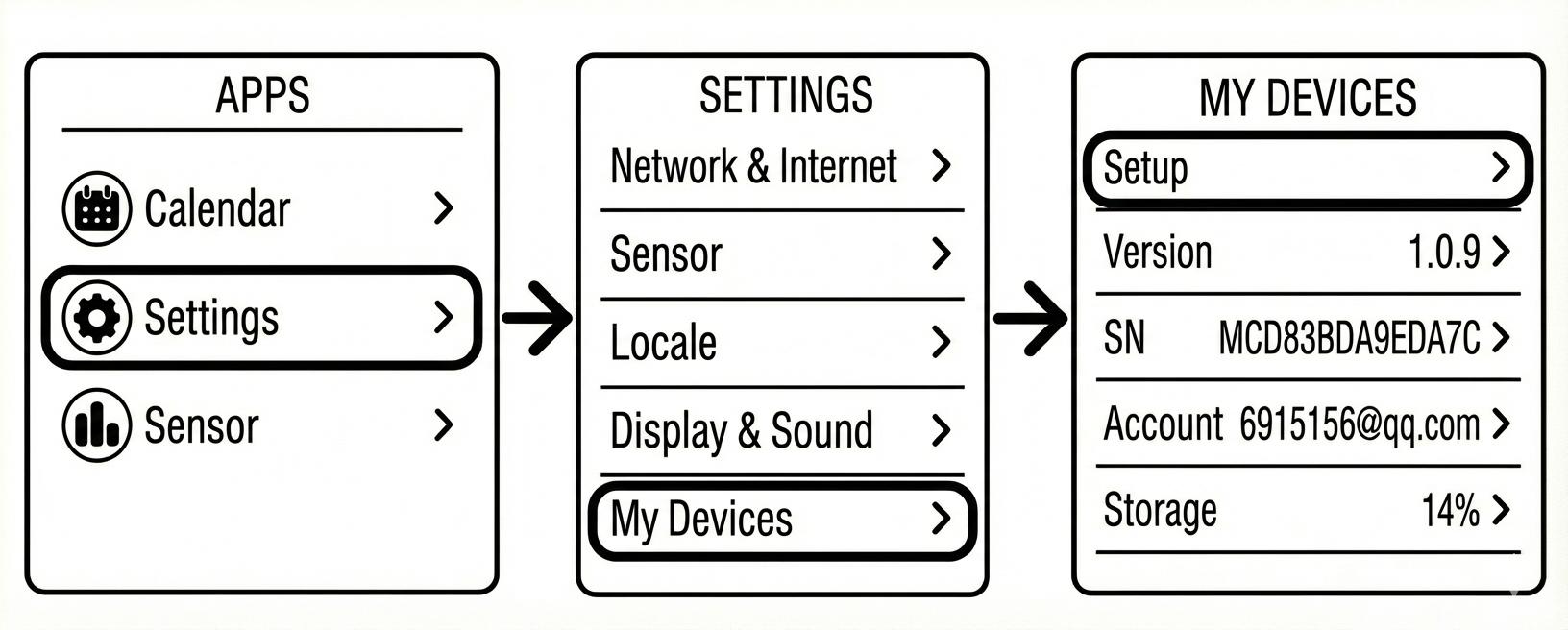

Re-enter setup mode – put the hub back into onboarding mode whenever you need to pair it with a new network or owner.

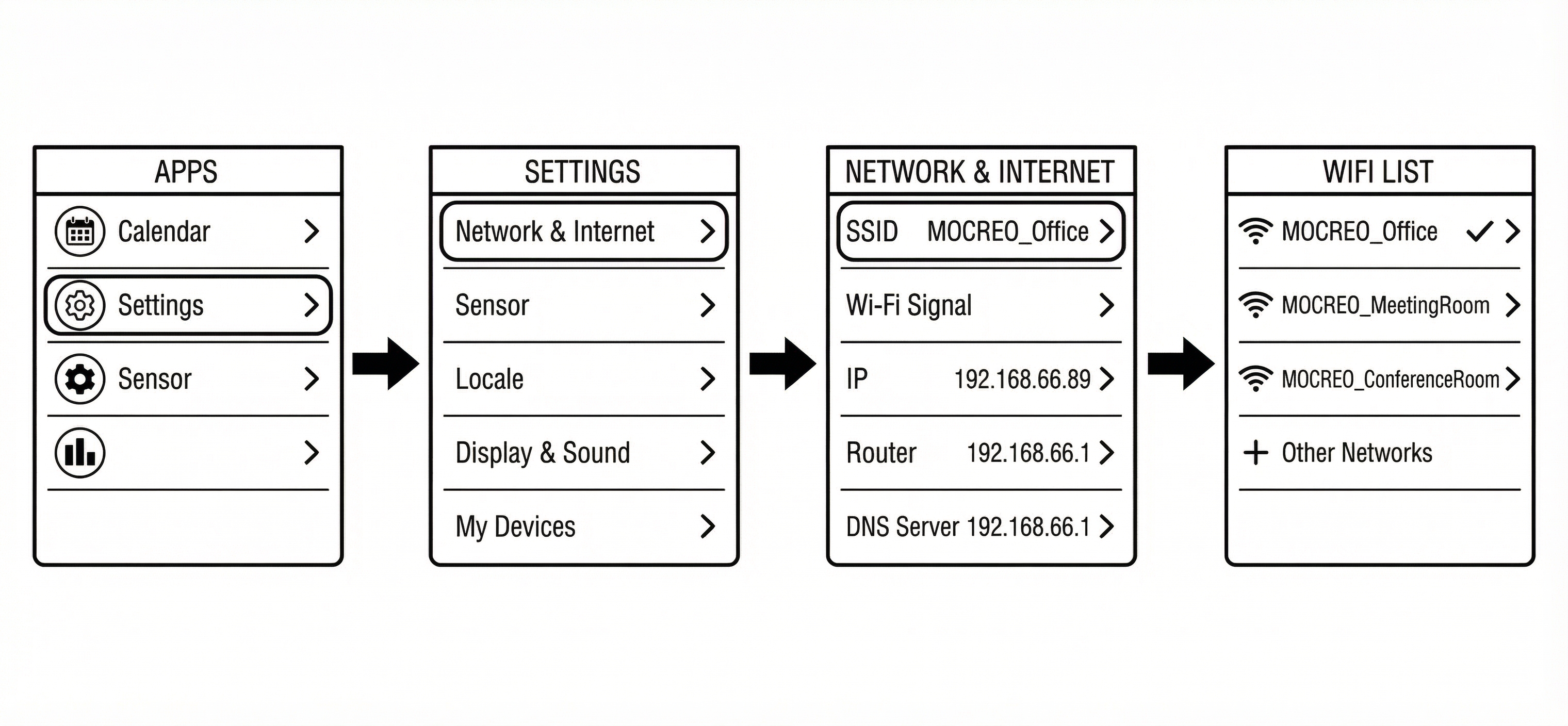

Wi-Fi access point switcher – quickly move between up to five cached Wi-Fi profiles; make sure the AP was connected successfully in the past before attempting a swap.

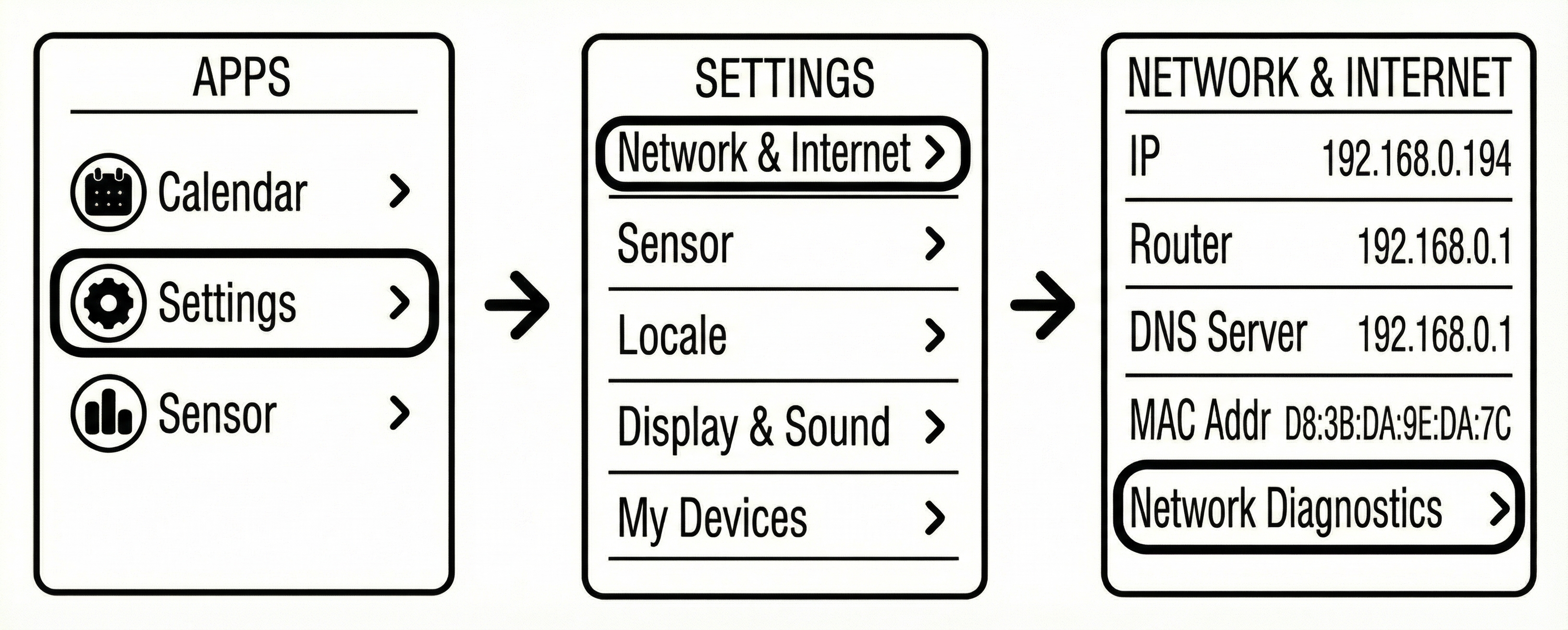

Offline diagnostics – launch the local troubleshooting panel when the hub cannot reach the cloud, enabling rapid checks before opening a ticket.

Additional Utilities

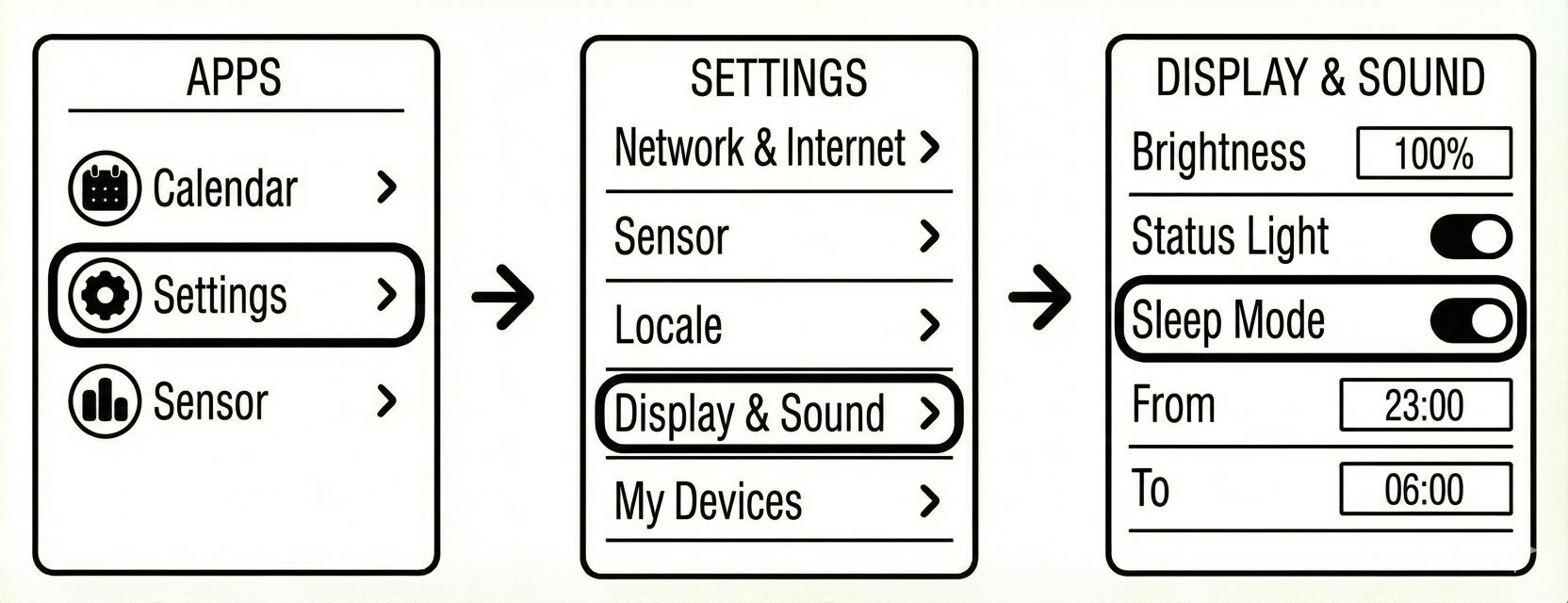

Sleep mode – turn off the display and indicator lights without stopping background services, perfect for bedrooms or quiet zones.

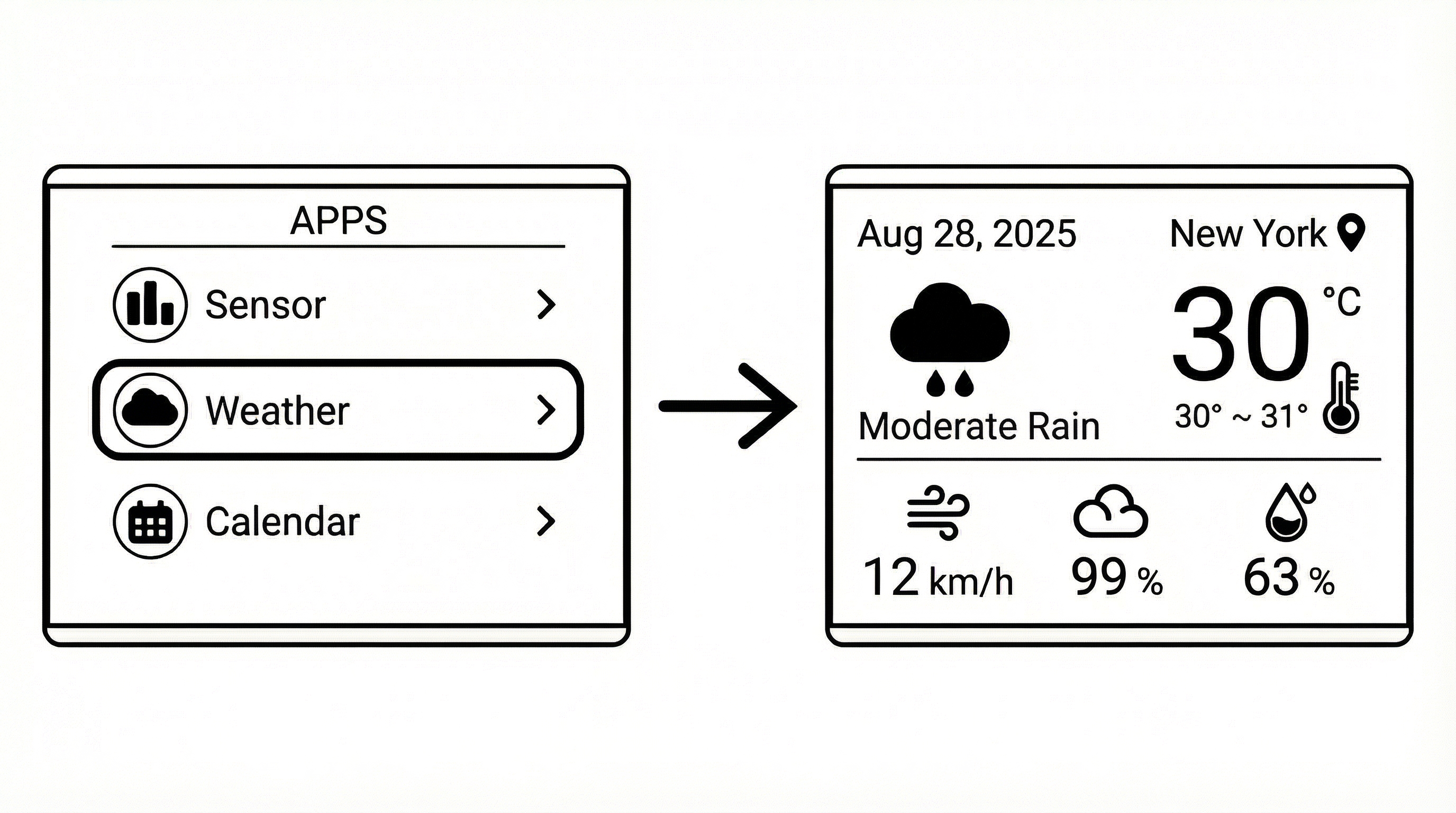

Weather glance – view the current weather for the hub’s location directly on the device.
